MASTERcare 150 | Empty Pallet Loader
General operation sequence
Pallet stacks are loaded with a forklift. The pallets are then conveyed to the pallet handling area automatically by a chain conveyor.

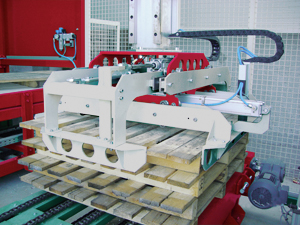

Pallets of various sizes are automatically centred, clamped pneumatically, lifted off the top of the stack with utmost operational safety, and loaded onto or removed from the user's transport systems of choice.
General Data
| Machine drawing | MASTERcare 150, Empty pallet loader |
| Finish | RAL 7035, RAL 7016, RAL 3020 |
| Total weight | 4.380 kg |
Technical Specifications
| Length/width/height | 8.500/4600/4600 mm |
| Weight/pallet | ca. 25 kg |
| Pallet store | ca. 75 Paletten |
| Stack height | ca. 1.500 mm |
| y-axis travel | 2.000 mm |
| y-axis drive power | 1,5 kW |
| z-axis travel | 1.500 mm |
| z-axis drive power | 3,0 kW |
| Cycle time/pallet | ca. 37 sec. |
| Gripper/clamp area in x axis | min. 550 mm – max. 1.280 mm |
| Gripper/clamp area in y axis | min. 980 mm – max. 1.480 mm |
| Service medium | Druckluft gefiltert, geölt oder ungeölt |
| Operating pressure | 6 bar |
| Length of chain conveyor 1 | ca. 1.900 mm |
| Length of chain conveyor 2 | ca. 5.800 mm |
| Height | 750 mm |
| Controller | Siemens S7/300 |
| Total drive power | 7,5 kW |
| Connected voltage | 400 V |
